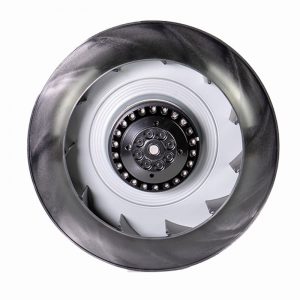

Centrifugal Fan

Product Application

Features:

The special design on the inlet and outlet of the centrifugal fan are suitable for the customers with the special requirement on their industrial machine.

Product Application:

  • Cooling fan for electrical box
  • Cooling fan for UPS
  • Cooling fan for heat exchanging machine
  • Cooling fan for CNC machinery
  • Coolng fan for air purifier
  • Cooling fan for dehumidifier
  • Cooling fan for solar system equipment

Description of Model No.

UF 220 A P A 23 H2 C 2 A
1 2 3 4 5 6 7 8 9 10

1. UF : Fulltech Brand

2. Blade Diameter :

133(72) = 133mm. (Thick = 72mm.) 133(91) = 133mm. (Thick = 91mm.) 160 = 160mm. 175 = 175mm. 180 = 180mm.
180(55) = 180mm. (Thick = 55mm.) 190 = 190mm. 200 = 200mm. 220 = 220mm. 225(69) = 225mm. (Thick = 69mm.)
225(85) = 225mm. (Thick = 85mm.) 225(99) = 225mm. (Thick = 99mm.) 250 = 250mm. 300 = 300mm. 318 = 318mm.
360 = 360mm. 400 = 400mm.


3. Sort of Fan :

A = Centrifugal Fan B = Axial Fan D = Blower Fan


4. Sort of Blade :

A = Aluminum P = Plastic M = Welded Steel N = Pressed Steel


5. Air Check :
Centrifugal Fan

A = Backward Curve, Single Air Intake B = Forward Curve, Single Air Intake C = Forward Curve, Dual Air Intake


Axial Fan

A = Air Discharge Out of Rotor Side B = Air Discharge Opposite Rotor Side


Blower Fan

B = Forward Single Air Inlet C = Forward Dual Air Inlet


6. Voltage :

11 = 115VAC 23 = 230VAC 38 = 380VAC


7. Speed :

H1 = High M1 = Medium L1 = Low


8. Sort of Motor :

A = 3 Phases S = Shaded Pole C = Capacitor Run Motor


9. Pole of Motor :

2 = 2P 4 = 4P 6 = 6P


10. Special Requirement :
Axial Fan

A = Standard with Frame B = With Low Guard / No Frame C = With High Guard / No Frame D = With Guard & Duct E = Without Frame


Centrifugal Fan

A = Standard F = With Mounting Disk

Fan Filter Unit (FFU) which provide the clear air to the clear room, the system can be suitable for opto-electronics, semiconductor, liquid crystal industry.

FFU which install in the ceiling

The larger size of Clear Room can be installed for hundreds, even thousands or hundreds thousands of FFU.

e.g : One of famous FFU manufacturer in Taiwan which used to use the Germany made centrifugal fan, however, it has disadvantage of high cost and long leading time, so they hope Fulltech can develop the Centrifugal Fan compare favorably with Germany made. After several years and the hundreds millions of funding, Fulltech has finally developed the centrifugal Fan series which performance, quality can compare favorably with Germany made, Fulltech Centrifugal Fan is widely implied in the clear room manufacturer.

FFU, (Fan Filter Unit)

พัดลมฟูลเทค

บริษัท เทค แอนด์ ไทม์ ซิสเต็ม จำกัด เป็นผู้นำเข้าพัดลมอุตสาหกรรมที่มีคุณภาพสูง ภายใต้แบรนด์ “Fulltech” (ฟูลเทค) สินค้าของเราสามารถตอบสนองความต้องการของลูกค้า ทั้งในด้าน คุณภาพ ราคา การบริการหลังการขาย โดยมีการทดสอบคุณภาพทุกชิ้นก่อนส่งถึงมือลูกค้า

Centrifugal Fan : Cooling Fan : Fulltech

We’re the leading import companies of fan products brand name “Fulltech”. Our company is the distributor and representative of FULLTECH FAN product in THAILAND. Fulltech fans are widely accepted as being the leading brand name for every industry in THAILAND. The Fulltech product which we supply can meet all the needs of the customer. Our fans are tested for quality before delivery to the customer.
